Custom Split ±35V Power Supply designed to power an 80W Audio Amplifier.
This project is a custom split-rail power supply intended for a future audio amplifier build.
Highlights

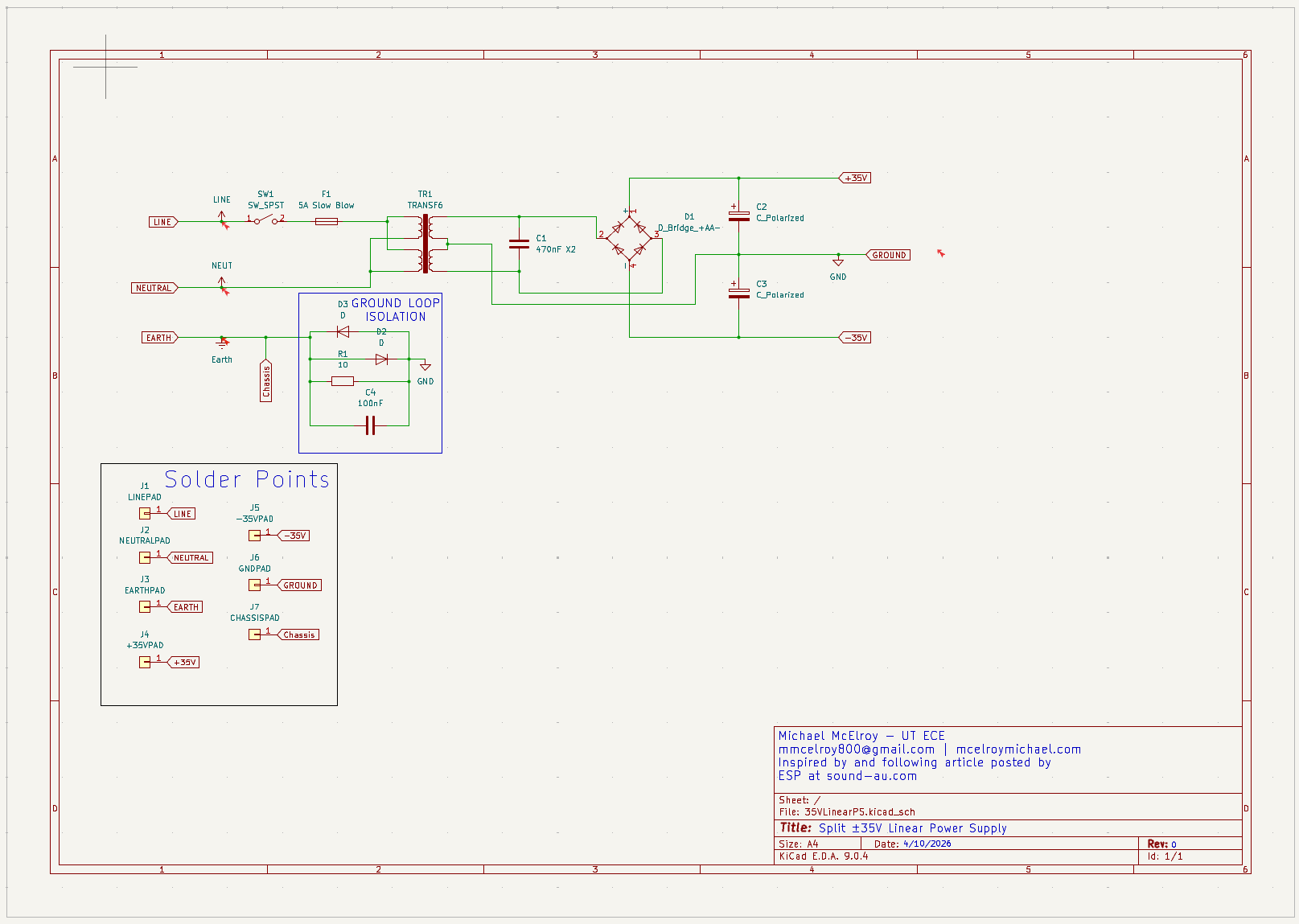

- Drafted first-pass schematic in KiCad.
- Selected initial component list from DigiKey.
- Next phase is PCB layout and footprint verification.
Tech
- KiCad
- Power Electronics
